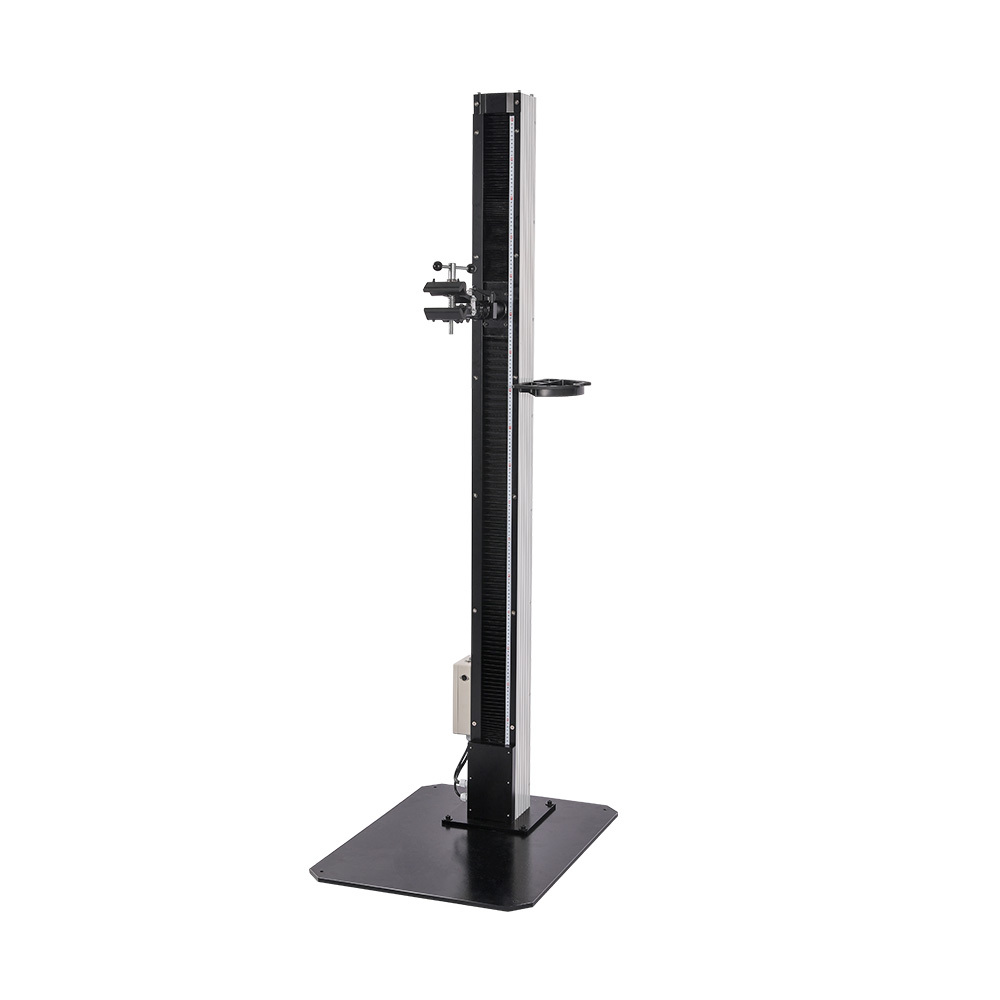

E-Bike Repair Stand

• Product size: 480*250*1960mm (Without Base board)

• Material : Aluminum alloy

•  Weight: 47.8kg(Without Base board)

• Base board(sold separately /provided by client): 800*600*12mm 42kg

• Power adapter

INPUT: 100～250V AC

OUTPUT: 48V DC 10.5A（500W）

•  Motor: 48V DC,  400W SERVO motor (Powerful lifting power)

•  Standard Lifting capacity： 50kg

• Lifting transmission mode: Ball Screw transmission

•  Maximum height: 1650mm , Minimum height:640mm

• Moving Speed: 3m/min

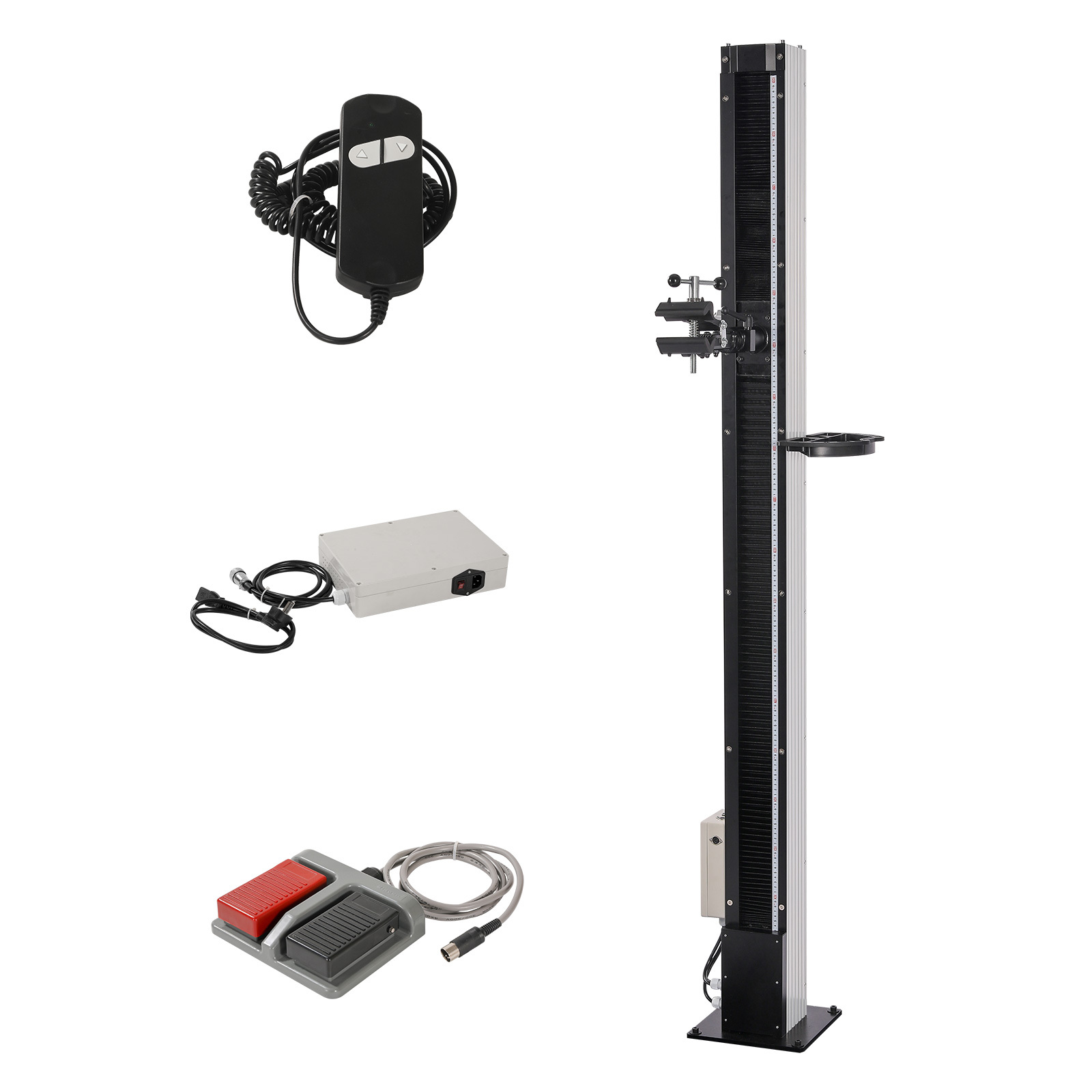

• Control mode:  Wire control board, Foot button control

• Lift lock: Hover at any position within the lifting range

• Clamp capacity: tubes from 25 to 70 mm diameter

• Clamp Rotation： 360°(Can be rotated to any position and fixed)
